As the world becomes more electrified, the demand for safety and efficiency increases. Circuit breakers are crucial for maintaining safety and preventing damage to electrical equipment. Miniature Circuit Breakers (MCBs) and Moulded Case Circuit Breakers (MCCBs) are today’s most famous circuit breakers. This blog will explore different types of miniature circuit breakers and their applications.

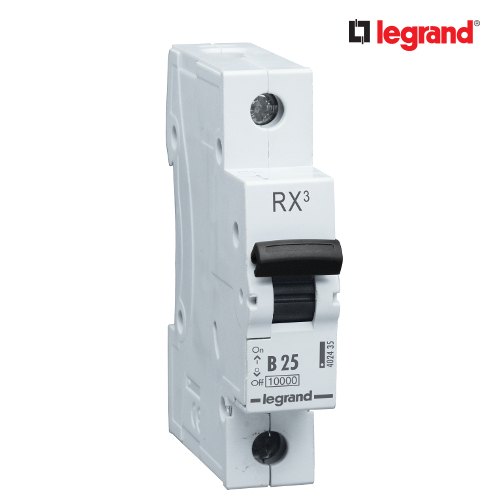

What is a Miniature Circuit Breaker (MCB)?
An MCB is designed to automatically switch off electrical circuits during an overload or short circuit. It is a circuit breaker designed to protect electrical systems from damage caused by excessive current flow. An MCB typically has a current rating between 6 and 63 amps and is commonly used in residential and commercial buildings.
Types of MCBs
Type B MCBs
Type B MCBs are designed to protect against overcurrents caused by short circuits and overloads in domestic installations. They are suitable for courses that supply lighting, household appliances, and general-purpose outlets.
Type C MCBs
Type C MCBs are designed to protect against overcurrents caused by short circuits and overloads in commercial and industrial installations. They are suitable for courses that supply motor control, heating, and lighting.
Type D MCBs
Type D MCBs protect against overcurrents caused by short circuits and overloads in high-inrush current applications such as transformers, welding machines, and discharge lighting.
What is an MCCB or Moulded Case Circuit Breaker?
An MCCB is a type of circuit breaker that is designed to protect higher current applications. MCCBs are typically used in industrial and commercial applications where the current demands are much higher than in residential applications. They offer a more comprehensive range of current ratings and are available in fixed and adjustable trip settings.
Types of MCCBs
Thermal Magnetic MCCBs
Thermal Magnetic MCCBs use thermal and magnetic protection to detect and respond to overcurrents. They are suitable for circuits that supply motors, transformers, and other high-inrush current applications.
Electronic MCCBs
Electronic MCCBs use microprocessors to detect and respond to overcurrents. They offer greater precision and flexibility compared to thermal magnetic MCCBs. Electronic MCCBs are suitable for applications that require precise and adjustable protection.
Compact MCCBs
Compact MCCBs are designed for applications where space is limited. They are available in thermal-magnetic and electronic versions and offer a smaller footprint than traditional MCCBs.
What is an RCCB or Residual Current Circuit Breaker?
An RCCB is a circuit breaker designed to detect and interrupt fault currents caused by ground faults. These circuit breakers are commonly used in areas with a risk of electric shocks, such as bathrooms and kitchens.
Types of RCCBs
Two Pole RCCBs
Two Pole RCCBs are designed to protect single-phase circuits. They are commonly used in residential and commercial buildings.
Four Pole RCCBs
Four Pole RCCBs are designed to protect three-phase circuits. They are commonly used in industrial and commercial applications.
If you want to buy MCB online, Legrand offers a convenient and secure platform to browse and purchase its range of circuit breakers. With Legrand’s reputation for excellence in providing high-quality and innovative products, you can ensure the safety and efficiency of your electrical systems.
